Maintenance

Product Structure File Maintenance

Application Overview



This application enables the user to maintain the Product Structure File.  Numbers of related records from this file make up the various bills of material and so the Product Structure File is the main file in the BOMP package.



This file and the bills of material, which can be stored in it, become a very important tool in the manufacturing environment.  In addition to containing design and manufacturing specifications, it can also be used for forecasting and product scheduling.



The following is a brief explanation of the contents of the records stored in this file with some hints as to how this file might be utilized.



Product Structure Maintenance



A product structure is created by specifying relationships between pairs of items where the lower one is a component that is assembled with other components to create the higher item which is called a parent.  A parent will usually have relationships with two or more component items.  However, it is allowed for a parent to have a single component.  A component may be used in many different assemblies, each of which would be considered a parent.  Each of these component-parent relationships needs to be specified in the Product Structure File.  See Product Structure example below.



In addition to the parent and component numbers, the Product Structure record includes the following fields:



a)    The sequence number of the component within this structure.  Components will display and print according to this sequence number, which is entered by the user.



b)    The quantity per assembly.  This field assigns the quantity of components per parent item.  The magnitude of the quantity can be expressed in either integer or decimal form and can be either positive or negative. This wide choice makes the file useful for different types of bills.



c)    Where the component attaches to the operation.  One of the important considerations of the capability to specify this operation is that the user can now see if any of his shortages are, in fact, not crucial until later in the assembly if Shop Floor Control is being used.



d)    Shrink/scrap factor.  This gives the user the capability of being more accurate in estimating component usage.



e)    The activity code indicating whether this parent-component relationship is currently active, planned for future, or obsolete.  The capability of noting obsolete items allows the user to maintain structures he no longer wants to use but, for whatever reason, does not want to delete.  He can leave them on file to be reviewed later to then determine if they should be modified or deleted.



f)     The effectivity date indicates the date that a forecasted item should become active. For a more detailed explanation of the effectivity date, refer to the Package Overview section of this manual.



g)    The obsolete date indicates the date that an active item should become obsolete.  For a more detailed explanation of the obsolete date, refer to the Package Overview section of this manual.



h)    User-Information field.  This can be a date or any user-defined code.



i)     The reference designator can be used to show a routing of a component item.  It may contain information pertinent to this component for this parent.  For example, it may describe additional processing procedures, replacement parts, references to schematics or blueprints, machining tolerances, or inspections to be performed.



Types Of Bills



In addition to the Bill Of Material designed by engineering and used by manufacturing, there are other bills, which are used in planning and scheduling.  These so-called pseudo-bills differ most from the Bill Of Material where there is a product with many different options.



Forecasted bills (pseudo-bills) are an artificial grouping of items, in bill of material format, used to facilitate master scheduling and/or material planning.  For example, forecasted bills can be used in master scheduling to explode requirements properly for optional components.  These bills are also called planning bills.





A modular bill is a type of planning bill, which is arranged in product modules.  It is often used in companies where the product has many optional features, e.g. automobiles.  This type of bill is designed and maintained in the Feature/Option Configuration File Maintenance application.



Copy Structure



The copy structure feature provides the ability to copy the structure of an existing bill to a new item number.  Then modifications can be made to create a new assembly without starting from scratch.  A new activity code, a new effectivity date, a new obsolete date, and a new user-defined field can be specified for the new bill.



Mass Replace



Replacing an obsolete part with another is simple with the mass replace feature.  After the user specifies the obsolete and replacement item numbers the old part, wherever it occurs in all bills, is replaced by the new part.  This feature can also be used to phase out obsolete items by making the replacement item the sole component of the obsolete item in the bill.



Product Structure Example



Structuring bills of material can be confusing until you do some, and then it becomes much easier.  A bill of material is, by definition, a parts list.  By structuring a bill of material you get a product structure i.e., a breakdown of the parts list in a manner resembling the stages in which the product is built.  A good example is a motherboard for a personal computer.  This motherboard has the following components:



           1.  1 CPU (CPU)

           2.  1 Video-CD (VID)

           3.  1 Input/Output (I/O)



The motherboard (MB) structure would be shown as:





NOTE:  The numbers in ( ) in the diagram indicate the quantity-per.



Continuing to the next level, the CPU is made of:



               1.  1 Clock (C)

               2.  1 Data-Bus/Buffer (DB)

               3.  1 Memory Manager (MM)

               4.  1 Monitor-ROM (M)

               5.  1 2 Meg. Ram (MR)

               6.  1 Ram Address Multiplexer (RM)

               7.  1 CPU Reset (CR)

               8.  1 280 Micro Processor (MP)

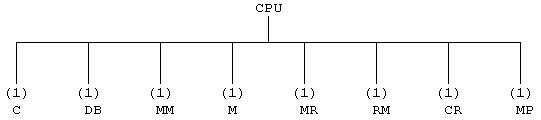

The (CPU) structure would be shown as:







You should know a few things here.



1)    There generally is a lower level for any part unless that part is purchased.  If you buy or purchase a part, that means you are not manufacturing it yourself.  If you are not manufacturing it yourself, there is no need here for its components, since you will not use them for this part.



2)    You must have unique item numbers for all items (parents, sub-assemblies, and components) used in Product Structure.



3)    As you can see, the use of significant item numbers (i.e., the number tells you something significant about the item) can quickly become limiting and therefore is not recommended; i.e., non-significant item numbers.



4)    Load the Product Structure (P/S) File via the Product Structure File Maintenance application.  Notice that each P/S record has one field for parent item and one for component item.  Each P/S record shows one relationship, and one way to load the P/S File is one product line at a time, one level at a time.  For example, the above Mother Board may be entered as follows:



        P/S File

        Maintenance     Parent     Component     Quantity-Per



        1st Entry        PC           CPU            1

        2nd Entry        PC           VID            1

        3rd Entry        PC           I/O            1




And then the CPU's structure may be entered as:



        1st Entry       CPU           C              1

        2nd Entry       CPU           DB             1

        3rd Entry       CPU           MM             1

        4th Entry       CPU           M              1

        5th Entry       CPU           MR             1

        6th Entry       CPU           RM             1

        7th Entry       CPU           CR             1

        8th Entry       CPU           MP             1







Note:  All the reports and inquiries will show components in the sequence they were entered.  The only way to alter this sequence is to use the field labeled Sequence Number.  The sort for bills of material is by sequence number within parent item number.  This is important not only because it allows components in alternating sequences, but also because you can now specify the same components several times on the same level for a common parent.  This circumstance does arise once in a while e.g., left and right-handed knobs where the right-handed one is used in operation 20, but the left-handed one is not used until operation 50.



The key to becoming good at handling product structures is practice.  If it seems confusing, start by entering a non-complex structure of anything you want and look at the reports.  Once you have the basic understanding, then you may want to analyze some of the evolutionary terms like planning bills, pseudo bills, super bills, modular bills, etc.   However, you must understand the simple bill of material relationship.



One concern that frequently seems to arise is the situation where one large piece of material is used for smaller pieces of various sizes; when the various sizes are not consistent, and all go with different products.  Examples are:



      -   large sheet metal from which parts are pressed or stamped out, each part going to a different product.



      -   wood boards from which smaller pieces are cut, varying by  order.



      -   rolls of tubing, wire, cable, etc. from which various lengths  are cut for various requirements.



BOMP does not handle the above directly.  A way it can be handled is with a two-pronged approach.  First, all such product structures are set up so the components (that come from the larger pieces) indicate a specific size i.e., a 2' x 5' metal piece, 2' x 4' wood piece or 10' of a certain cross-section tubing, wire, cable, etc.  It disregards the larger piece, per se.  An optional way is to determine which type of order will first cut into the larger piece.  Then, you can discern what non-related components are by-products of the extracting operation, set up the structure including all components to be extracted, but use a negative quantity-per on the non-related by-products.



Second, regardless of the above method, the size of by-product issues are handled more directly through a combination of more efficient manufacturing processes, statistical process control and a scrap/rework department charged with getting scrapped material back in production.



Bill of Material Product Structure Import



This is an add-on feature.  This utility can be used to either import a new product structure or modify an existing product structure.  Modifying an existing product structure may cause a quantity allocation integrity issue, if the parent item already has activity.  Since this problem can be easily resolved through the Reset Qty Allocation utility, the import utility will only give a warning message when this happens.  Contact Netcellent or your Elliott reseller for more information about this utility.


Run Instructions



Select Product Structure File from the pull down BOMP Maintenance window.  The following screen will then be displayed:

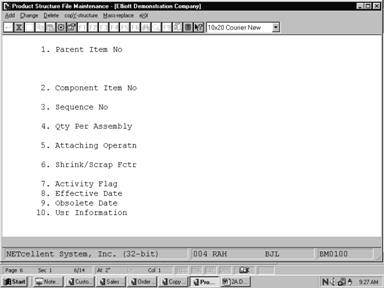

Product Structure File Maintenance Entry Screen







 The following options are available:



                  *     Select the desired mode from the Product Structure File menu bar

                  *     A menu will then be displayed, allowing you to choose one of these options:

                        Add New Product Structure Items

                        Change Product Structure Items

                        Delete Product Structure Items

                        Copy Product Structures

                        Mass Replace Items in Product Structure File

                  *     Enter the data requested on the screen



      To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.



Entry Field Descriptions



Add, Change, Delete



Name

Type and Description

The Sequence Number Will Default To The Last Used Sequence Number Plus The Following Increment Please Enter The Sequence Increment Value

3 numeric digits (999).



Enter the increment, which will be used when adding new product structure records to determine the next default sequence number.  The increment is added to the last sequence number used by the parent to determine the default.

1.      Parent Item No

15 alphanumeric characters.



Enter the item number, which will be used as the parent item.  This is the item whose components are being defined by this new product structure record.  This item must already exist in the Inventory Item File.



The item may not be a product feature, kit item or component of a kit (ie. field #73 in the Inventory Item File may not be set to F or K).



In add mode, pressing the F1 key for the parent item number after the first product structure record has been added will default the item number to the last item number entered; the sequence number to the last sequence number on file for this parent, plus the increment entered; and default the activity flag and user-defined field to the values last entered for this parent.



Press the F7 key to search for an item by number or press the F8 key to search for an item by description.



In change mode, you are not allowed to change this key field.



After the parent item number is entered, the Inventory Item File is read, and the item description and unit of measure are automatically displayed.

2.      Component Item No

15 alphanumeric characters.



Enter the item number, which will be used for the component in the Product Structure record.  This item must exist in the Inventory Item File.  In change and delete modes, if the F1 key is pressed, the next component for this parent is displayed until the right record is found or there are no more product structure records for this parent.

Component Item No (continued)

In the add mode, press the F7 key to search for an item by number or press the F8 key to search for an item by description.



In add and change mode, press the F6 key to search for existing component items.  In change mode, once a component is selected, you are not allowed to change this key field.  This capability exists in the Engineering Change Processing application.



After the component item number is entered, the Inventory Item File is read and the item description and unit of measure are automati­cally displayed.

3.      Sequence No

3 numeric digits (999).



Enter the sequence number, which will be used with the parent item number to uniquely identify this Product Structure record.  The sequence number may not be zero and must be unique for this product structure.



The default for this field is the last used sequence number for this parent item plus the increment.



In change mode, you are not allowed to change this key field.

4.      Qty Per Assembly

10 numeric digits with 6 decimal places and optional minus sign

(9999.999999-).



Enter the quantity per assembly for this Product Structure record.  This is the number of component items needed to make this one parent.  An entry is not required.

5.      Attaching Operatn

4 numeric characters.



Enter the number of the operation in this parent's routing, where this component is first used or attached.

6.      Shrink/Scrap Fctr

4 numeric digits with 1 decimal place (999.9).



Enter the percentage of this component, which it is anticipated will be lost due to scrap, shrinkage, etc.



This factor may be included in several reports to help determine the actual gross requirements for a particular product.  An item designated as a serial item, may not have a shrink/scrap factor.

7.      Activity Flag

1 alphanumeric character.



This field can have one of three values:



A      =   Active

F      =   Forecasted

O      =   Obsolete



An active item is one currently in use, or being sold to customers.  A forecasted item is one, which is forecasted to be active in the near future.  An obsolete item is one which is no longer a standard part, though there may still be a supply of the item on hand which can be sold or used in manufacturing processes.



In the Bill Of Material Processor package, this is mainly an informational field, although it is used in other manufacturing packages.  Material Requirements Planning, for example, will not plan orders for an obsolete item.



The field defaults to A, or Active.

8.      Effective Date

A date in the standard date format.



Enter the effectivity date for this item.  If the item has is an active item, you must leave the field blank.



If the item is forecasted, this is the date the item should become active.



This field may be updated automatically in the Set Component Activity Flags application.



For a more detailed explanation of the effectivity date, refer to the Package Overview section of this manual.



This field defaults to no effectivity date.

9.      Obsolete Date

A date in the standard date format.



Enter the obsolete date for this item.



If the item is active, this is the date the item should become obsolete.  If the item has no obsolete date, you may leave the field blank.



This field may be utilized to change the activity flag in the Set Component Activity Flags application.



For a more detailed explanation of the obsolete date, refer to the Package Overview section of this manual.  This field defaults to no obsolete date.

10.    Usr Information

6 alphanumeric characters.



The name for this field may be defined by the user in the BOMP Setup application.  The field can be used for any purpose the user desires.



This field is not displayed if the user-defined field in BOMP Setup is blank.

F6 = Reference Designator

3 lines of 60 alphanumeric characters each.



This field can be used to show a routing of a component item.  It will be printed on work orders and may be shown on several reports and inquiry applications.



Copy Structure



Name

Type and Description

1.      From Item No

15 alphanumeric characters.



Enter the item number of the parent or sub-assembly you want to copy from.



This is the parent item whose components are being copied to a new or existing product structure record.  This item must already exist in the Inventory Item File.



Press the F7 key to search for an item by number or press the F8 key to search for an item by description.

2.      To Item Number

15 alphanumeric characters.



Enter the item number you want to copy the preceding information into.

3.      Increment

3 numeric digits (999).



Enter the increment, which will be used when adding new product structure records to determine the next default sequence number.  The increment is added to the last sequence number used by the parent to determine the default.

4.      Activity Flag

1 alphanumeric character.



One of three values may be entered:



A = Active

F = Forecasted

C = Copy Current Flag



An active item is one currently in use, or being sold to customers.  A forecasted item is one, which is forecasted to be active in the near future.  An obsolete item is one, which is no longer in use.  If the field is set to A or F, all copied items will have their activity flags set to that status.  If the field is set to C, the current status of all components' activity flags will be copied to the new product structure.



In the Bill Of Material Processor package, this is mainly an informational field although it is used in other manufacturing packages.  Material Requirements Planning, for example, will not plan orders for an obsolete item.

5.      Effective Date

A date in the standard date format.



Enter the effectivity date for the components of the new parent item number.  If the item is forecasted, this is the date the item should become active.

If the item is currently active, you should leave the field blank.



For a more detailed explanation of the effectivity date, refer to the Package Overview section of this manual.



This field defaults to no effectivity date.

6.      Obsolete Date

A date in the standard date format.



Enter the obsolete date for the components of the new parent item number.  If the item is active, this is the date the item should become obsolete.



If the item is already obsolete, you may leave the field blank.



For a more detailed explanation of the effectivity date, refer to the Package Overview section of this manual.



This field defaults to no obsolete date.

7.      Usr Information

6 alphanumeric characters.



Enter the user-defined field for the components of the new parent item number.



The name for this field may be defined by the user in the BOMP Setup application.  If the field name is not defined in BOMP Setup this field will not be displayed.  The field can be used for any purpose the user desires.



Mass Replace



Name

Type and Description

1.      Obsolete Item No

15 alphanumeric characters.



Enter the obsolete item number that you want to mass replace.



This item must already exist in the Inventory Item File.

2.      Replacement Item No

15 alphanumeric characters.



Enter the replacement item number.



This item must already exist in the Inventory Item File.




Screens

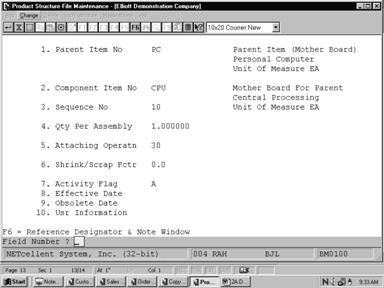

Product Structure File Maintenance

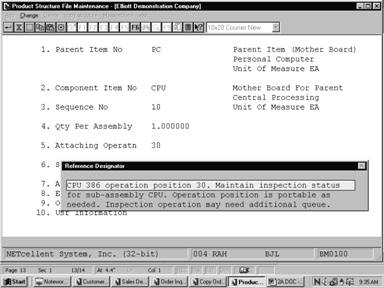

Reference Designator




ScreensScreens

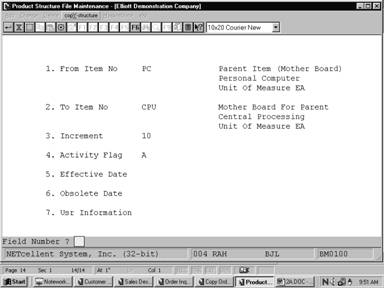

Product Structure File (Copy Structure)

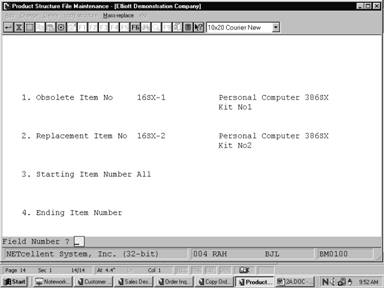

Product Structure File (Mass Replace)
