Single Level Bill Of Material Inquiry

Application Overview



The Single Level Bill Of Material Inquiry allows you to display a single level bill of material for the entered parent item.  It does not show any components more than one level down.



It offers the option of blowing through phantom items (non‑stocked, non‑controlled component items) to show the phantom's components in place of the phantom item.



It also offers the option of displaying the reference designators defined in the Product Structure File Maintenance application.  The description and low level code (Llc) are displayed for parent and component items.



Run Instructions



Select Single Level Bill Of Material from the pull down BOMP Inquiry window.  The following screen will then be displayed:

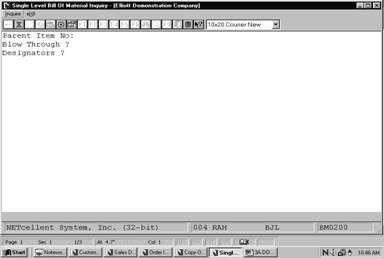

Single Level Bill Of Material Entry Screen





 The following options are available:



                  *     Select the desired mode from the Single Level Bill Of Material menu bar

                  *     Enter the data requested on the screen



      To return to the menu bar, press the ESC or F10 key. To leave this application, press X for EXIT when positioned at the menu bar.




Entry Field Descriptions



Name

Type and Description

Parent Item No:

15 alphanumeric characters.



Enter the item number of the parent item for which you wish to see a bill of material.



Press the F7 key to search for an item by number or press the F8 key to search for an item by description.

Blow Through ?

Y or N.



Component items, which are neither stocked nor controlled, are known as phantom items. Answering Y to this question allows you to blow through phantom items to the real component items, which are down one level.



Default is N.

Designators ?

Y or N.



Answering Y to this question allows the reference designator for each component item to be displayed.  Default is N.





Screens

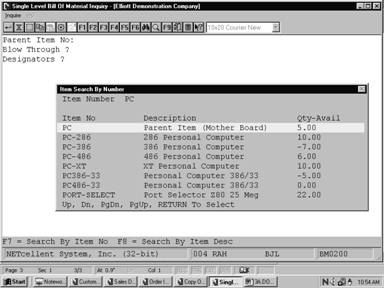

Item Search By Number

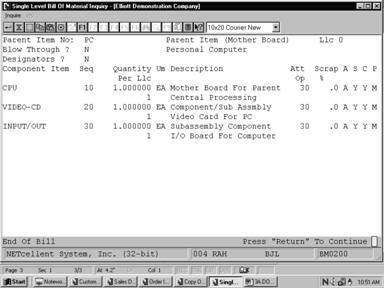

Single Level Bill of Material Inquiry






                                             F E A T U R E  /  O P T I O N   L I S T



Ranges: All Products



Feature Item     Description

                 Feature/Description                    Rqd?



PC‑386           386 Personal Computer

                 Customize During Order Entry



                 001  Base PC 386 Personal Computer      Y



                      Opt  Option Item      Description                           Qty/Per  Chg?  Spl?    Unit Price



                      001  BOX‑386‑1        Basic SM Box w/7 Exp 6‑16 1‑8        1.000000   N     N       399.0000

                      002  BOX‑386‑2        Adv Box HDps 8 Exp 32 5‑16 2‑8       1.000000   N     N       499.0000



                 002  Memory‑MHZ Options For PC‑386      Y



                      Opt  Option Item      Description                           Qty/Per  Chg?  Spl?    Unit Price



                      001  MEM‑MHZ‑1        12 Mhz 2 Meg Motherboard Opt         1.000000   N     N       200.0000

                      002  MEM‑MHZ‑2        16 Mhz 2 Meg Motherboard Opt         1.000000   N     N       225.0000

                      003  MEM‑MHZ‑3        16 Mhz 4 Meg Motherboard Opt         1.000000   N     N       248.0000

                      004  MEM‑MHZ‑4        16 Mhz 6 Meg Motherboard Opt         1.000000   N     N       276.0000



                 003  Monitor Options For PC‑386         Y



                      Opt  Option Item      Description                           Qty/Per  Chg?  Spl?    Unit Price



                      001  MON‑NEC‑1        NEC Multisync 2A EGA Monitor         1.000000   N     N       405.0000

                      002  MON‑NEC‑2        NEC Multisync 3DS VGA Monitor        1.000000   N     N       575.0000

                      003  MON‑NEC‑3        NEC Multisync 4DS VGA Monitor        1.000000   N     N       985.0000

                      004  MON‑NEC‑4        NEC Multisync 5D 20 Monitor          1.000000   N     N     2,334.0000

                      005  MON‑KPT‑1        Keypoint 4 Super VGA Monitor         1.000000   N     N       399.0000
